Product Details

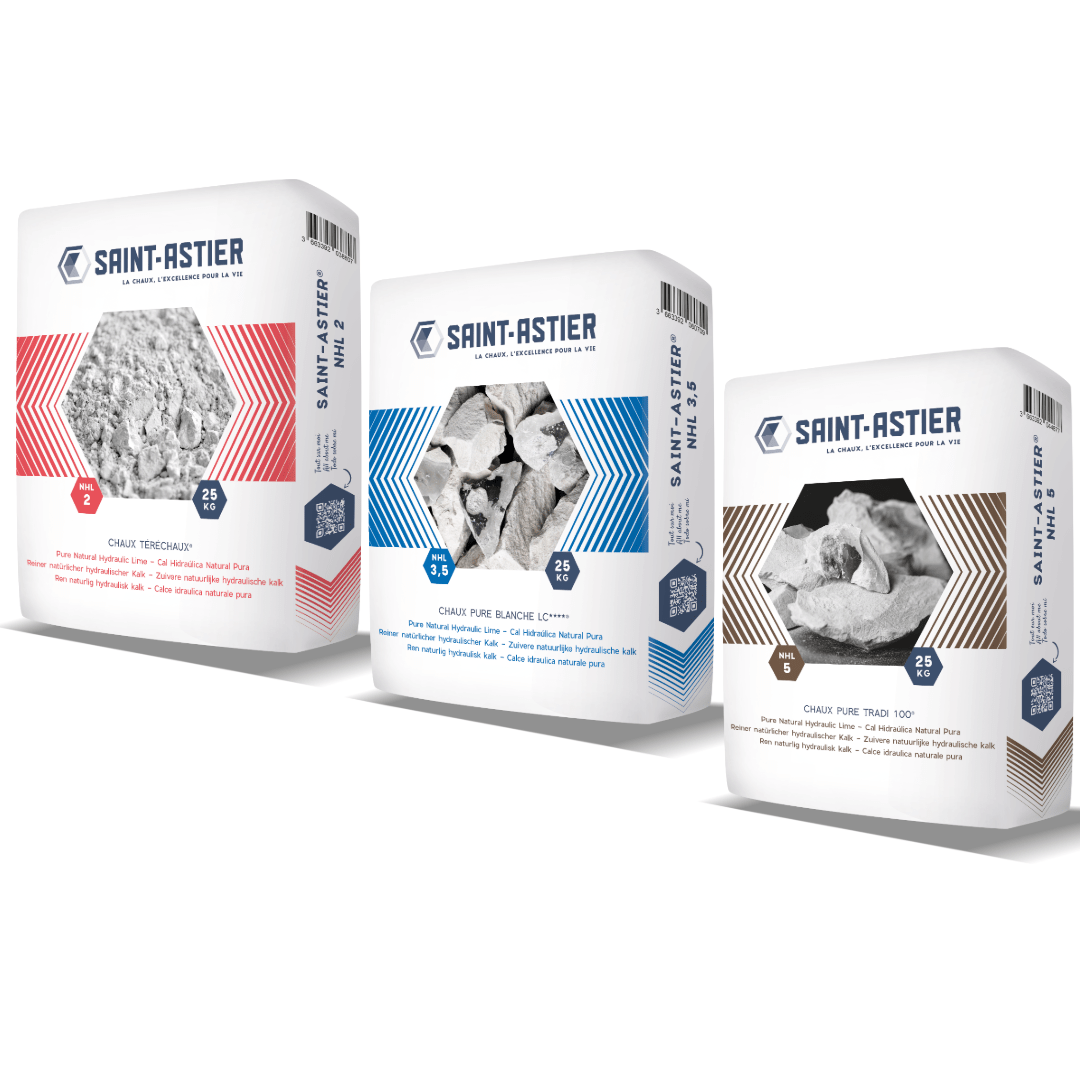

Saint-Astier® Natural Hydraulic Lime
Saint-Astier® Natural Hydraulic Lime (NHL) is an industry-standard used for historic restoration mortar, stucco, and Plaster with no harmful portland cement present or required. Saint-Astier® NHL is pure and natural, free of additives, and has been in use throughout the world for over 150 years. To learn more about Saint-Astier® visit StAstier.com.
Why SAINT-ASTIER® NHL?
Need Pre-mixed material?
Check out our premixed Ecologic Mortar, based on Saint Astier Natural Hydraulic Lime.
Need something more custom?
We do custom simulations for mortar, brick, stone, terracotta, and paint. Visit “Ordering a Custom Formulated Simulation” to learn more.
Benefits
Maintaining good vapor permeability in the exterior envelope of an historic building will allow the historic masonry units themselves to have an even longer service life thus keeping them in a better state of conservation. Vapor permeability is also key to the longevity of new sustainable construction projects. Saint-Astier® NHL has low capillarity and high vapor permeability. Independent studies have shown Saint-Astier® NHL to have a higher level of vapor permeability than all mortar mixes containing any amount of Portland cement. This remains true while achieving comparable strengths for many applications without the need to add Portland cement or a Pozzolan to achieve proper and effective mix designs.
Immune to Salts and Sulfates
Saint-Astier® NHL is completely immune to sulfates and salts. Alkali-silica reactions, common with Portland cement mortars do not take place with Saint-Astier Natural Hydraulic Limes. This is due to the absence of tri-calcium aluminates only created in high temperature fired kilns which are required for the production of Portland Cement.
Modulus of Elasticity
Saint-Astier® NHL has an excellent modulus of elasticity. Unlike Portland cement-based mortars, Saint-Astier® NHL mortars limit the requirements for strategically placed control joints in walls. The breathability of mortars made with Saint-Astier® NHL also reduces, if not eliminating, the requirement for weep vents in curtain or veneer walls.
NHL 2 (Natural Hydraulic Lime) |
|---|
- Feebly Hydraulic lime is used where the highest amount of “free lime” is desired along with the greatest modulus of elasticity, low strength or high vapor exchange. It sets with air and water and cures in about four days
- Very soft pointing mortars used for repairing around friable historic masonry
NHL 2 Bag Coverage for Plaster and Stucco
| Ratio | ||
| 1:2 | 1:2.5 | |
| Thickness | Coverage ft2 | |
| 1/8″ | 269 | 324 |
| 1/4″ | 134 | 162 |
| 3/8″ | 89 | 108 |
| 1/2″ | 67 | 81 |
| 3/4″ | 44 | 54 |
| 1″ | 33 | 40 |
NHL 3.5 (Natural Hydraulic Lime) |
|---|
- Moderately Hydraulic lime is recommended for use when moderate strengths and better freeze-thaw resistance is required.
- Used for applications such as laying or repointing brick, stone and terra cotta units even in extreme freeze-thaw climate cycles.
- It can be used to make scratch, brown and finish coats of exterior stucco
- Quick Estimation Numbers
One bag of NHL 3.5 mixed with 2-1/2 parts sand will:
- Lay about 160 standard brick
- Repoint about 300 square feet of standard brick joints @ 3/8″ wide and 3/4″ deep
- Repoint about 900 lineal feet of standard brick joints @ 3/8″ wide and 3/4″ deep
- Lay about 40 standard 8″ x 8″ x 16″ block
- Stucco about 50 square feet @ 3/4″ thick
- Require 150 bags for 1000 square feet of mass stone wall laying at a depth of 24″
- Repoint about 50 square feet of rubble stone wall @ 1″ wide and 1-1/4″ deep
NHL 3.5 Bag Coverage for Plaster and Stucco
| Ratio | ||
| 1:2 | 1:2.5 | |
| Thickness | Coverage ft2 | |
| 1/8″ | 203 | 221 |
| 1/4″ | 101 | 110 |
| 3/8″ | 67 | 73 |
| 1/2″ | 50 | 55 |
| 3/4″ | 33 | 36 |
| 1″ | 25 | 27 |
NHL 5 (Natural Hydraulic Lime) |
|---|
- Eminently Hydraulic lime is specified when strength and high freeze-thaw resistance are necessary.
- Used for applications such as building or repairing wall head copings, pointing and parging the water table or foundation of a building and making lime concrete. Sea-bearing walls can be built and repaired with NHL 5 since it has only trace amounts of soluble salts.
NHL 5 Bag Coverage for Plaster and Stucco
| Ratio | ||
| 1:2 | 1:2.5 | |
| Thickness | Coverage ft2 | |
| 1/8″ | 203 | 230 |
| 1/4″ | 101 | 115 |
| 3/8″ | 67 | 76 |
| 1/2″ | 50 | 57 |
| 3/4″ | 33 | 38 |
| 1″ | 25 | 28 |
